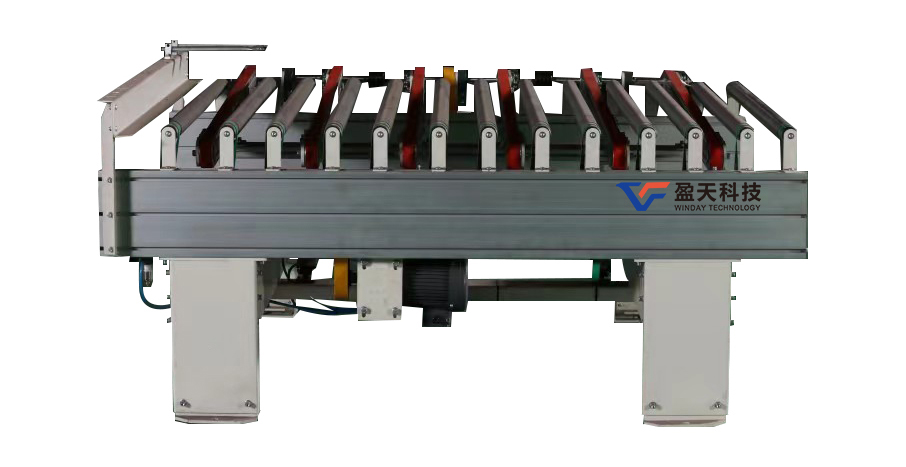

Angle Translation Conveyor


Characteristic:

1. The length and height can be adjusted according todifferent applicable environments.

2. It can be applied separately or online, with flexibleapplication.


Technical parameters:

ModelZUA30103JLK33102BBS33407
Processing length(mm)400-1850400-1850600-1850
Processing width(mm)100-600100-300150-320
Processing thickness(mm)3-203-2035-80
Voltage380V/50HZ380V/50HZ380V/50HZ
Power(KW)1.51.51.5
Efficiency(m/min)10-8010-8010-80
 L * W * H(mm)3000-1400-9002000-1400-9302000-850-820
Weight(KG)450350300
