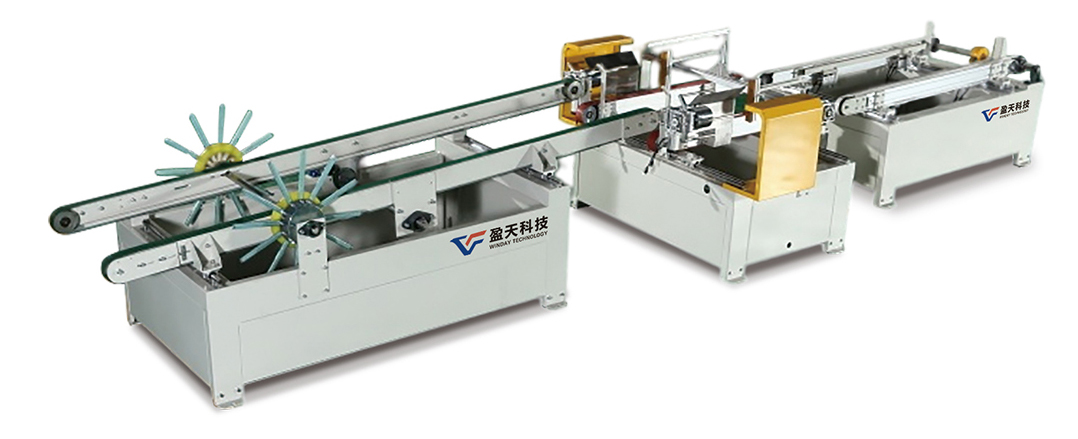

Current location：Home>Products>CNC Lamination Series
Characteristic：
1. The servo motor is precisely controlled and the setting is simple.
2. Both left and right directions can be used flexibly.
3. PLC and touch screen control, simple and convenient operation.
Applicable Fields：
Plastic plate, solid wood plate, composite plate andother plate laminates.
Technical parameters：
| Model | ZMZ24802 |
| Processing length(mm) | 600-1250 |
| Processing width(mm) | 100-400 |
| Processing thickness(mm) | 3-80 |
| Voltage | 380V/50HZ |
| Power(KW) | 0.75 |
| Efficiency(m/min) | 10-80 |
| L * W * H(mm) | 2000-1100-890 |
| Weight(KG) | 150 |
