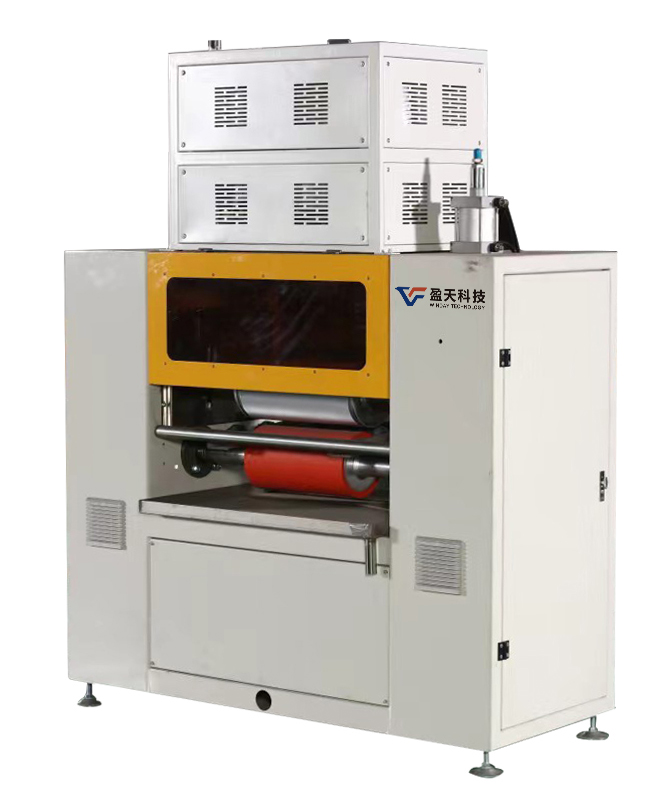

Gluing Machine


Characteristic:

1.The use of the industry's highest standards of double-roller coating design, completely effective solution to the current market coating uneven, scraper drum service life is short, adjust the amount of plastic rather troublesome and other prominent problems.

2. Adopt unique heating cycle system to ensure the glue evenly heated, roll glue surface with special treatment, after bonding, there will be even small pores inside the glue in the oxidation to achieve the best bonding effect while reducing the amount of glue so as to be more environmentally friendly.


Applicable Fields:
Suitable for dust removal of furniture plate and floor plate.

Technical parameters:

Technical parametersTJQ33102
Processing length(mm)600-1850
Processing width(mm)100-300
Processing thickness(mm)3-20
 Voltage380V/50HZ
Power(KW)3.7
Efficiency(m/min)10-80
L * W * H(mm)1600-900-2000
Weight(KG)730
